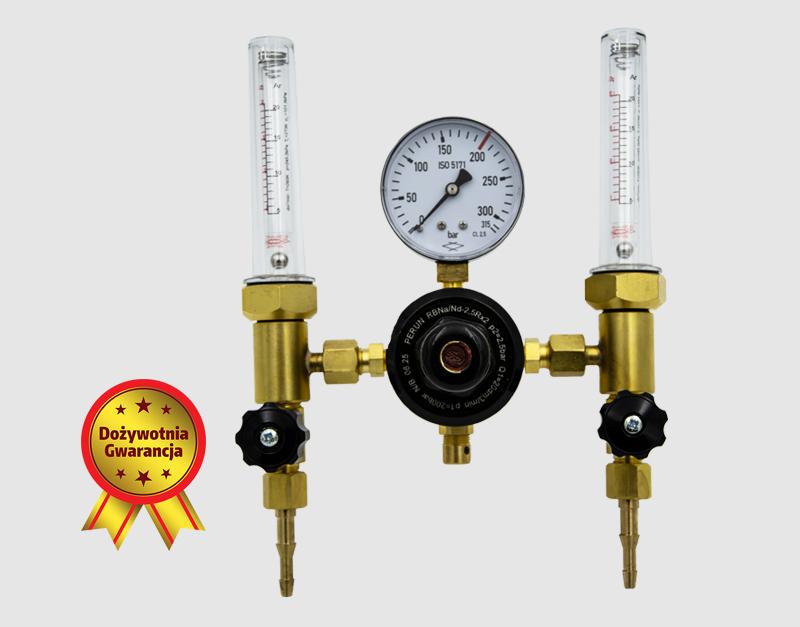

DESCRIPTION: Single-stage cylinder regulators with pressure gauges allow reducing the pressure of gases taken from the cylinder and measuring their outflow at the regulator outlet. These regulators are equipped with gas flow pressure indicators graduated in dm3/min in two scales, i. e. for argon and carbon dioxide. Maximum pressure at flow of 12 dm3/min is 2,5 bar (0,25 MPa).
APPLICATION: Cylinder reducers with pressure indicator are used for welding in protective gas shields: argon and carbon dioxide. When welding in argon and carbon dioxide, regulators have the required flow rate, i. e. max. 12 dm3/min.
THE COMPOSITION OF THE SET:
The reducer set includes:
– Reducer l pcs.
– Spare gasket 2 pcs.
– Packaging: cardboard box l pcs.
| Preview | Index/ Regulator type | Gas type | MAX inlet pressure bar [MPa] | Output pressure bar range bar [MPa] | Range of capacity [dm3/min] | Thread caps intake | Outlet thread / Tip [mm] | Products Data Sheet |
|---|---|---|---|---|---|---|---|---|
 | W262-8562 RBArg/KW-0,25 WM | Argon Carbon dioxide | 200 (20) | 0,2 – 2,5 (0,02 – 0,25) | 0 -20 | W21,8x 1/14″ | G 1/4 4/6,3 | download |
 | W212-6860 RBNa/Nd-2,5Rx2 | Argon Carbon dioxide | 200 (20) | 0,5 – 2,5 (0,05 – 0,25) | 5 – 20 | W21,8x 1/14″ | G 1/4 4/6,3 | download |
 | W212-6861 RBNa/Nd-2,5Rx2 | Argon Carbon dioxide | 200 (20) | 0,5 – 2,5 (0,05 – 0,25) | 3 – 20 | W21,8x 1/14″ | G 1/4 4/6,3 | download |
